RSFQ-G 系列直齒齒條系列
產品特性
|
|
|
|
|
|
|
|
|
|
○ |
精度等級：DIN 7 |
|
○ |
齒面硬度：15~20HRC |
|
|
|
○ |
齒型：直齒 |
|
○ |
表面處理：研磨 |
|
|
|
○ |
壓力角：20° |
|
○ |
齒面處理：精切削 |
|
|
|
○ |
材質：42CrMo |
|
○ |
熱處理：調質熱處理 |
|
|
|
|
|
|
|
|
|

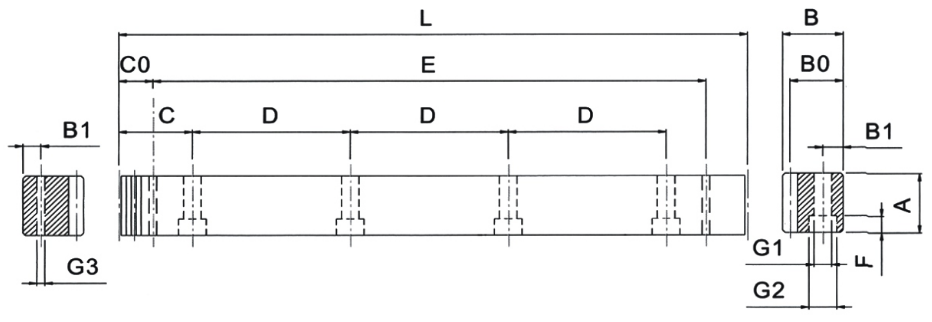

機械尺寸
技術參數
單位/Dimension：mm
產品型號
Catalog NO. |
L |
齒數
Tooth NO . |
A |
B |
B0 |
C |
D |
孔數
Hole NO. |
B1 |
G1 |
G2 |
F |
C0 |
E |
G3 |
總齒距
誤差
PichError/ 300mm |
|
SSGH015-050 |
499.51 |
106 |
17 |
17 |
15.5 |
62.44 |
124.88 |
4 |
7 |
6 |
9.5 |
7 |
29.0 |
441.5 |
5.7 |
0.042 |
|
SSGH015-100 |
999.03 |
212 |
17 |
17 |
15.5 |
62.44 |
124.88 |
8 |
7 |
6 |
9.5 |
7 |
29.0 |
941.0 |
5.7 |
0.042 |
|
SSGH020-050 |
502.64 |
80 |
24 |
24 |
22 |
62.83 |
125.66 |
4 |
8 |
7 |
11 |
7 |
31.3 |
440.1 |
5.7 |
0.044 |
|
SSGH020-100 |
1005.28 |
160 |
24 |
24 |
22 |
62.83 |
125.66 |
8 |
8 |
7 |
11 |
7 |
31.3 |
942.7 |
5.7 |
0.044 |
|
SSGH030-050 |
508.95 |
54 |
29 |
29 |
26 |
63.62 |
127.23 |
4 |
9 |
10 |
15 |
9 |
34.4 |
440.1 |
7.7 |
0.046 |
|
SSGH030-100 |
1017.9 |
108 |
29 |
29 |
26 |
63.62 |
127.23 |
8 |
9 |
10 |
15 |
9 |
34.4 |
949.1 |
7.7 |
0.046 |
|
SSGH040-050 |
502.64 |
40 |
39 |
39 |
35 |
62.83 |
125.66 |
4 |
12 |
10 |
15 |
9 |
37.5 |
427.7 |
7.7 |
0.048 |
|
SSGH040-100 |
1005.28 |
80 |
39 |
39 |
35 |
62.83 |
125.66 |
8 |
12 |
10 |
15 |
9 |
37.5 |
930.3 |
7.7 |
0.048 |
|
SSGH050-050 |
502.65 |
32 |
49 |
39 |
34 |
62.83 |
125.66 |
4 |
12 |
14 |
20 |
13 |
30.1 |
442.4 |
11.7 |
0.050 |
|
SSGH050-100 |
1005.31 |
64 |
49 |
39 |
34 |
62.83 |
125.66 |
8 |
12 |
14 |
20 |
13 |
30.1 |
945 |
11.7 |
0.050 |
|
SSGH060-050 |
508.95 |
27 |
59 |
49 |
43 |
63.62 |
127.23 |
4 |
16 |
18 |
26 |
17 |
31.4 |
446.1 |
15.7 |
0.055 |
|
SSGH060-100 |
1017..9 |
54 |
59 |
49 |
43 |
63.62 |
127.23 |
8 |
16 |
18 |
26 |
17 |
31.4 |
955.0 |
15.7 |
0.055 |
|
SSGH080-050 |
502.64 |
20 |
79 |
79 |
71 |
62.83 |
125.66 |
4 |
25 |
22 |
33 |
21 |
26.6 |
449.5 |
19.7 |
0.060 |
|
SSGH080-100 |
1005.28 |
40 |
79 |
79 |
71 |
62.83 |
125.66 |
8 |
25 |
22 |
33 |
21 |
26.6 |
952 |
19.7 |
0.060 |
